العربيةDrilling Rig (YDX-6)

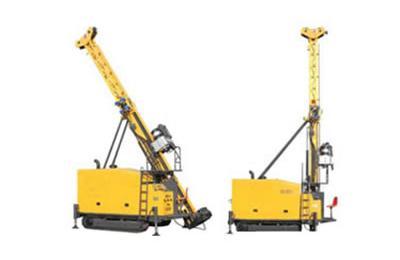

Brief Introductions of YDX-6 Drilling Rig
Our YDX-6 drilling rig has a hydraulic driving system. It is equipped with tracks. With a reasonable structure, its power head is driven by a variable motor and its speed is adjustable for 2 gears. This product enjoys the following advantages: low gravity center of the drill rig ensures a steady operation; in the range from 0° to 90°, the mast is adjustable to ensure a proper hole-drilling angle. Owing to the beautiful outline and special design, this product gains a worldwide popularity.
Main Features of YDX-6 Drilling Rig
1) We use well-known brands parts and auxiliary equipment, such as the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories to ensure the reliable quality.
2) Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long drilling rod guarantee the high operation efficiency of the drilling rig.
3) The special design ensures the reduction of noise and other contamination (The noise can not be over 72db). This product is environmental friendly.
4) The advanced loading-sensor-controlling helps the rig save the energy. That is, cause the lowest driving force consumption and heat discharge.
Application Range of YDX-6 Drilling Rig
YDX-6 drilling rig can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
Technical parameters of YDX-6 Drilling Rig
| Hole Depth of Drilling Rig (meters) | ||
| Drilling Capacity | HWT/PQ:1000 meter HRQHP/HQ :1300 meter NRQHP/NQ:1600 meter BRQHP/BQ：2000 meter | |
| Prime mover | ||
| Standard Unit | Cummins 6CTA (turbocharged and charge water cooled) | |
| Displacement | 8.3L | |
| Power (Maximum) | 178kW(240hp) | |
| Rated RPM(Factory setting) | 1,900 | |
| TORQUE AND RPM RATINGS | ||
| (Hydraulic motor at maximum/minimum displacement, prime mover at 2,200 rpm) | ||
| Rpm | Nm | |
| 1st Gear | 144-420 | 6400-1670 |
| 2ndGear | 520-1100 | 1380-600 |
| HYDRAULIC SYSTEM | ||
| Primary Pump | Hydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system. Maker: DANFOSS II Pump: Gear type: 40 LPM at 300 Bar. | |
| Secondary Pump | Axial Piston variable displacement duplex pump feeding oil for hydraulic Cylinder and control system. With load sensing system. Maker: Changyuan Hydraulic II Pump: Gear type:30 LPM at 300 Bar. | |
| Hydraulic Tank | ||
| Capacity | 420 L | |
| DRILL HEAD | ||
| Rotation Motor | Double Huade Hydraulic Motor-variable/Reversible Maker: SAUER-DANFOSS | |
| Mechanical Transmission | Funk 2 speeds | |
| Ratios | 1st8.776:1 2nd2.716:1 | |
| Head Opener | Pivoting style, Manual actuated | |
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally C Closed Type | |
| Axial Holding Capacity of222 400 N | ||
| Hold Diameter | 121mm | |
| DRILL MAST AND FEED SYSTEM | ||
| Mast Height | 10m | |
| Slippage Stroke | 1100mm | |
| Feed Stroke Length | 3200 mm | |
| Feed Pull | 30000kg | |
| Feed Thrust | 30000kg | |
| Rod Pull | 3m or 6m | |
| Mast Adjusting Angle | 0-90o | |
| Drilling Angle | 45o off horizontal to 90overtical down | |
| DRAW WORKS | ||
| Main Line Winch – driven with parallel motors | ||
| Hook Load (single part line) Bare Drum | 12000kg | |
| Hoisting Speed (single part line) Bare Drum | 38-70m/min | |
| Main Line Winch Cable Dia. | 21.5mm | |
| Main Line Winch Cable Length | 50m | |
| Wireline Hoist | ||
| Line Pull Bare Drum | 1500kg | |
| Line Speed Bare Drum | 38-70m/min | |
| Wireline Hoist Cable Dia. | 6.3mm | |
| Wireline Hoist Cable Length | 2000m | |
| Mud Pump | ||
| Type | Reciprocating pump Triplex Plunger | |
| Stroke | 110mm | |
| Output volume (l.p.m) | 320,230,165,118 | |
| Discharge pressure (Mpa) | 4.0,5.0,6.0,8.0 | |
| Dimensions and Weight | ||
| Dimensions (for transportation) | 5900×2240×2500mm (L×W×H) | |
| Weight | 9600kg | |
