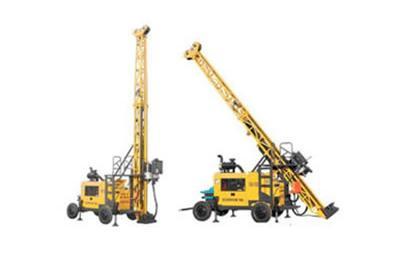

Brief Introductions of YDX-5C Hydraulic Drilling Rig
The YDX-5C hydraulic drilling rig is mainly designed for prospecting solid mineral deposits. It adopts advanced technology in wire line coring and is driven with rotator. YDX-5C hydraulic drilling rig is widely used in geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.
Technical Features of Hydraulic Drilling Rig
1) Adopt the world famous hydraulic pumps, valves and motors.
2) There are two kinds of chassis: tyre-traction (with steering gear) and self-propelled steel crawlers.
3) Hydraulic cylinder is adopted for lifting/lowering.
4) When transported and located, the mast can be folded. The mast could work stably with foot clamp touching the earth.
5) Hydraulic drilling rig adopts load sensitive system and is equipped with high-position operation platform and operation hole platform (i.e. low-position operation platform).
6) The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. It has the following function: if the piston rod of oil cylinder moves one certain distance, the spindle will double the distance. The rotator is equipped with a four-speed gear shift, and hydraulic pressure with stepless speed change can adjust its speed. As to the rig, in its up part, it is equipped with centering guide; in its lower part is a guide. At the operation hole of the lower platform, a hydraulic clamp is adopted.
Main Technical Parameters of Hydraulic Drilling Rig YDX-5C
| Hole Depth of Hydraulic Drilling Rig (meters) | |||
| Drilling Capacity | HWT/PQ:680 meter HRQHP/HQ :1000 meter NRQHP/NQ:1300 meter BRQHP/BQ：1500 meter | ||
| Prime mover | |||
| Standard Unit | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) | ||
| Displacement | 8.3L | ||
| Power (Maximum) | 145kW(198hp) | ||
| Rated RPM(Factory setting) | 1,900 rpm | ||
| TORQUE and RPM RATINGS of Hydraulic Drilling Rig | |||
| (Hydraulic motor at maximum/minimum displacement, prime mover at 2,200 rpm) | |||
| Rpm | Nm | ||
| Low-speed Gear | 125-360 | 4150-1600 | |
| High-speed Gear | 395-1050 | 1450-550 | |
| HYDRAULIC SYSTEM | |||
| Primary Pump Package | Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation,Main Hoist, Mud Pump & Line Winch. Maker: SAUER-DANFOSS 1st Pump：150LPM at 28.5MPa 2nd Pump：120LPM at 25MPa 3rd Pump： 102 LPM at 25MPa | ||
| Side Pump Package | Duplex gear pumps feeding oil for hydraulic outriggers，upper and foot clamps, Drill Head Rotation and main hoist following, Rotator floating control system. Maker: Changyuan Hydraulic 1st Pump：12LPM at 20MPa 2nd Pump：8LPM at 10MPa | ||
| Hydraulic Tank | |||
| Capacity | 420 L | ||
| DRILL HEAD | |||
| Rotation Motor | Double Hydraulic Motor-variable/Reversible Maker：SAUER-DANFOSS | ||
| Mechanical Transmission | Funk 2 speeds | ||
| Ratios | 1st8.776:1 2nd2.716:1 | ||
| Head Opener | Pivoting style, Manual actuated | ||
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally Closed Type | ||
| Axial Holding Capacity of222 400 N | |||
| Hold Diameter | 121mm | ||
| DRILL MAST AND FEED SYSTEM | |||
| Mast Height | 10.3m | ||
| Slippage Stroke | 1100mm | ||
| Feed Stroke Length | 3200 mm | ||
| Feed Pull | 15000kg | ||
| Feed Thrust | 7500kg | ||
| Rod Pull | 3m or 6m | ||
| Mast Adjusting Angle | 0o - 90o | ||
| Drilling Angle | 45o - 90o | ||
| DRAW WORKS for Hydraulic Drilling Rig | |||
| Main Line Winch – driven with parallel motors | |||
| Hook Load (single part line) Bare Drum | 7700kg | ||
| Hoisting Speed (single part line) Bare Drum | 38-70m/min | ||
| Main Line Winch Cable Dia | 18mm | ||
| Main Line Winch Cable Length | 50m | ||
| Wire-line Hoist | |||
| Line PullBare Drum | 1200kg | ||
| Line Speed Bare Drum | 164 m/min | ||
| Wire-line Hoist Cable Dia. | 6mm | ||
| Wire-line Hoist Cable Length | 1500m | ||
| Mud Pump | |||
| Type | Reciprocating Pump Triplex Plunger | ||
| Stroke | 100mm 250,145,90,52 | ||
| Output volume (l.p.m) | |||
| Discharge pressure (Mpa) | 2.5, 4.5,6.0, 6.0 | ||
| Dimensions and Weight | |||
| Dimensions (for transportation) | 5600×2240×2650mm (L×W×H) | ||
| Weight | 7000kg | ||
