العربيةSpindle Core Drill

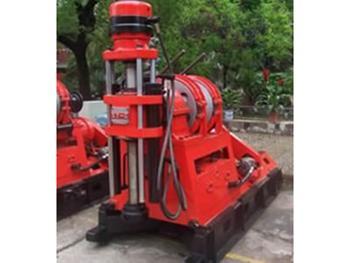

Brief Introductions of XY-4 Spindle Core Drill
XY-4 spindle-type core drill is widely used for core drilling and geophysical drilling in medium or deep layers. With diamond or tungsten carbide bits, it is used as the main drill rig in mineral and water exploration, engineering geological exploration, as well as shallow layer oil and gas exploration. Our products enjoy the good quality and low cost. We sincerely hope to cooperate with you.
Features of XY-4 Spindle Core Drill
1) The rotation speeds have achieved an appropriate range to satisfy the different drilling demands.
2) Easy transportation, operation and light weight.
Specifications of XY-4 Spindle Core Drill
| DRILLING CAPACITY | ||
| Core Drilling Rod | ||
| Φ50 | 850m | |
| Φ60 | 600m | |
| Wire-line Core Drilling Rod | ||
| Φ55.5 | 950m | |
| DCDMA Drilling Rods | ||
| AQ | 1200m | |
| BQ | 950m | |
| SWIVEL HEAD | ||
| Spindle I.D. | 68mm | |
| Spindle Speed (rpm) | Forward | 101, 187, 267, 388, 311, 574, 819, 1191 |
| Reverse | 83, 251 | |
| Spindle Stroke | 600mm | |
| Max. Torque of Spindle | 2640N.m | |
| Max. Pressuring Force of Spindle | 60kN | |
| Max. Lifting Force of Spindle | 80kN | |
| DRILLING ANGLE | 0-360° | |
| HOIST | ||
| Hoist Capacity (Single Rope) | 30kN | |
| Lifting Speed (m/s) | 0.82, 1.51, 2.16, 3.15 | |
| Wire Rope | Φ16mm | |
| Drum Capacity (Six Layers) | 90m | |
| Drum Diameter | 285mm | |
| HYDRAULIC PUMP | ||
| Displacement | 32L/min | |
| Working Pressure | 20MPa | |
| Max. Pressure | 25MPa | |
| Rotation Speed | 1500rpm | |
| SKID-TYPE FRAME | ||
| Retraction Stroke | 460mm | |
| Retraction Distance from Hole | 310mm | |
| POWER UNIT(Optional) | ||
| Electric Motor Y200L-4 | 30kW; 1465rpm | |
| Diesel Engine 2135G | 40HP; 1500rpm | |
| Overall Dimension LxWxH | 2640X1100X1750mm | |
| Weight (without power unit) | 1500kg | |
