العربيةDrill Rig (XY-8)

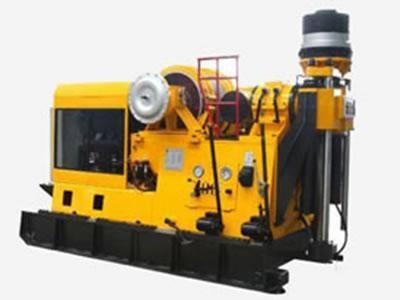

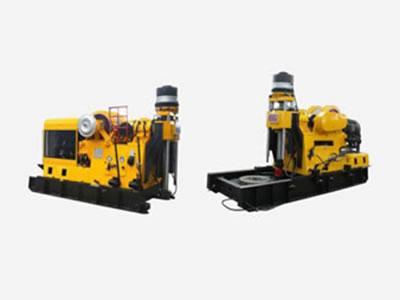

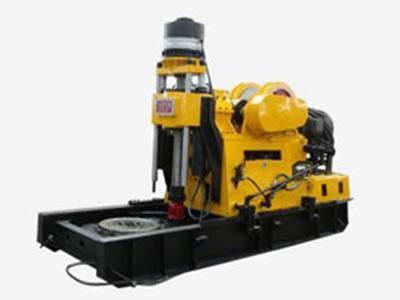

Brief Introductions of XY-8 Drill Rig
The XY-8 drill rig is used to install sub-surface fabrications, such as underground utilities, tunnels or wells instrumentation. In geography investigation and exploration, it is used as a drilling machine. XY-8 drill rig is suitable for different kinds of solid minerals. Geotec provides a variety of drill rigs and core drilling machines used for different geographical requirements. Any further information, please don't hesitate to contact us.
Specifications of Drill Rig XY-8
| Drilling depth | 1000 m—3000 m | |
| Rotate speed (rpm) | Clockwise rotation rates | 79;136;121;363;220;379;589;1011 |
| Anti-clockwise rotation rates | 51;142 | |
| Diameter of drilling rod | Ф50;Ф60;Ф71;Ф89;Ф114 mm | |
| Spindle stroke | 1000 mm | |
| Shift range | 690 mm | |
| Max. hoisting force | 300 kN | |
| Max. pressuring force | 141 kN | |
| Max. single-wire hoisting force | 125 kN | |
| Max. content of winding drum | 120 m | |
| Steel wire size | 21.5 mm | |
| Hoisting speed | 0.663;1.09;1.693;2.90;1.761;3.034;4.713;8.803 | |
| Electromotor model | Y2-280M-4 | |
| Electromotor output | 90 kw | |
| Electromotor rotation rate | 1480 r/min | |
| Diesel engine model | YC6B180D | |
| Diesel engine output | 134 kw | |
| Diesel engine rotation rate | 1800 r/min | |
| Dimensions | With electromotor 3905×1692×2603 mm | |
| With diesel engine 4105×1892×2803 mm | ||
| Weight | 4850 kg | |
